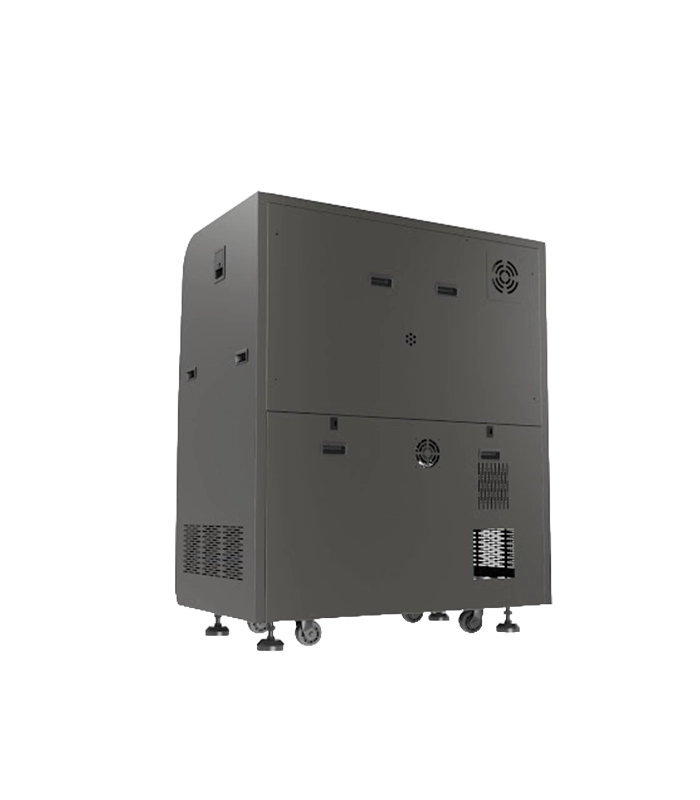

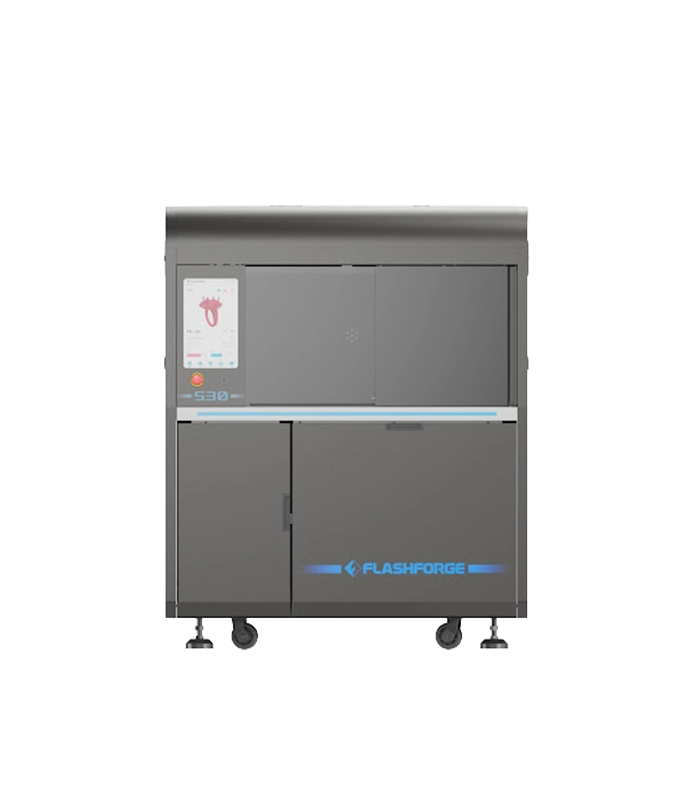

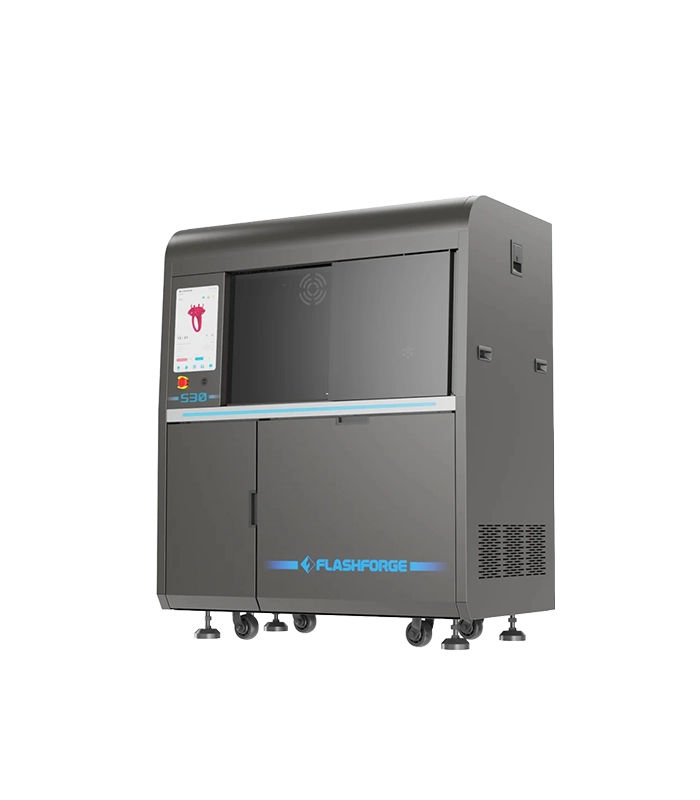

FlashForge Waxjet 530 MJP 3D Printer
WaxJet 530 is a high-precision MJP wax 3D printer designed for smooth surfaces, fine details, and reliable casting results. Ideal for jewellery and dental applications, it ensures consistent, professional-quality wax patterns.
-
Ultra Precision – High-detail wax printing accuracy
-
Smooth Finish – Minimal post-processing required
-
Stable Performance – Fast and reliable output
-
Casting Ready – Ideal for jewellery and dental use
-
Large Volume – Supports complex designs
Request Quote
Fill out the form below and our sales team will get back to you within 24 hours.
Request Demo
Fill out the form below and our sales team will get back to you within 24 hours.
Request Sample
Fill out the form below and our sales team will get back to you within 24 hours.
B2B GST Invoicing
Premium Technical Support
Pan India Shipping
High Quality Products
Warranty Support
Frequently bought together
DigiFabb DF-Wax Washer – Industrial Wax & Resin Cleaner
Digifabb IPA Recycling Machine
Original price was: ₹400,000.00.₹380,000.00Current price is: ₹380,000.00. (excl tax)Description
The WaxJet 530 is a cutting-edge machine that delivers unparalleled accuracy in printing intricate jewellery designs. It offers enhanced flexibility in both design and manufacturing, making it an essential tool for the jewellery industry.
Enjoy uninterrupted, reliable, around-the-clock printing with our fully automated workflow. Simply upload your print files, start printing with a single tap, and leave the machine to do the rest.The high-speed, high-resolution triple printhead system of the Flashforge WaxJet 530 XHD enhances design flexibility and manufacturing efficiency for the jewelry industry.
Key Features
- Triple Printhead prints 10× faster with 6.35 mm/h Z-axis speed.
- Uses 58%–60% wax—minimizes waste and cuts costs.
- Compatible with flexible red & white wax for precise casting.
- Smart Monitoring: Real-time tracking via Wi-Fi and 2K HD camera.
- User-Friendly Software: WaxJetPrint offers intuitive interface with one-click layout optimization
Technical Specifications
| Printing Technology | MultiJet Printing (MJP) |
| Build Volume | 289*208*150mm |
| Printhead | 3 piezoelectric printheads |
| Dimensional Accuracy | 20mm 士0.04mm |
| Resolution | 2900*2900*1700DPl layer thickness: 15μm |
| Material utilization | Material ≥55% |
| Printing Speed | ≥6.35mm/h @15μm layer thickness |
| Slicing Software | WaxJetPrint |
| Supported File Format | STL SLC |
| Connectivity | Network 10/100/1000 Ethernet USB WI-FI |
| Supported Operating Systems | Windows 7 / Windows 10(64bit) |
| Working Environment | Temp 18-26 Humidity 30-70% |
| Equipment Dimensions | 1352*775*1600mm |
| Net Weight | 480kg |
| Package Size | 1530*900*1837mm |
| Gross Weight | 630kg |
Material Specifications
| Material Name | FFWJ1200 | FFMS3200 |
| Material Type | Part Wax | Support Wax |
| Net Weight | 3.0 kg/bottle | 3.6 kg/bottle |
| Composition | 100% wax | Wax support material |
| Color | Red | White |
| Density@90°C(Liquid) | 0.79 g/cm3 | 0.85 g/cm3 |
| Melting Point | 68℃ | 55℃ |
| Softening Point | 63℃ | – |
| Volumetric Shrinkage | 1.1% | – |
| Linear Shrinkage | 0.7% | – |
| Needle Penetration Hardness | 9 | – |
| Ash Content | <0.01% | – |
| Description | High-precision castable wax | Hands-free dissolvable support wax |
*Conditions: â‘ Volumetric Shrinkage SH/T 0588-1994; â‘¡Needle Penetration
Hardness GB/T 4985-2010; â‘¢Ash Content GB/T 14235.3-1993
