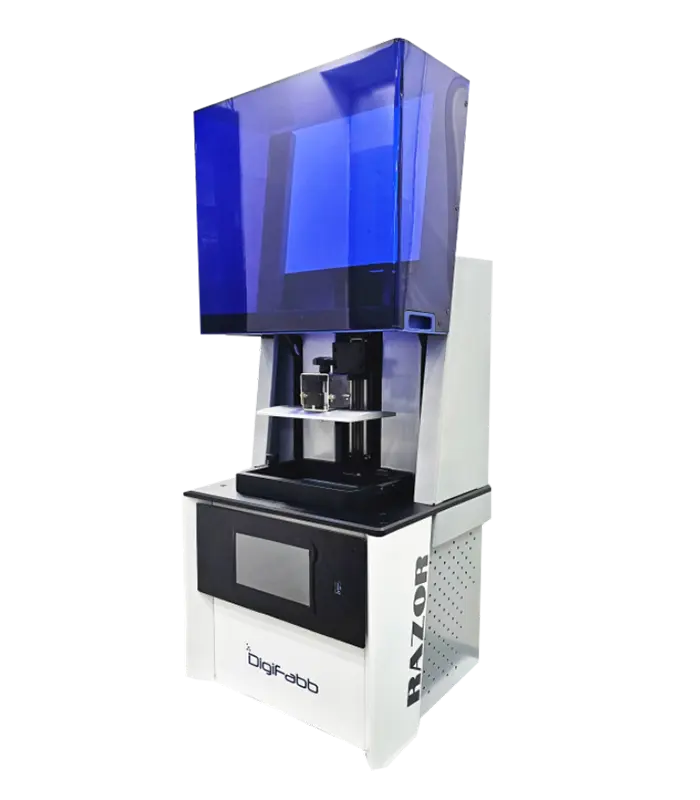

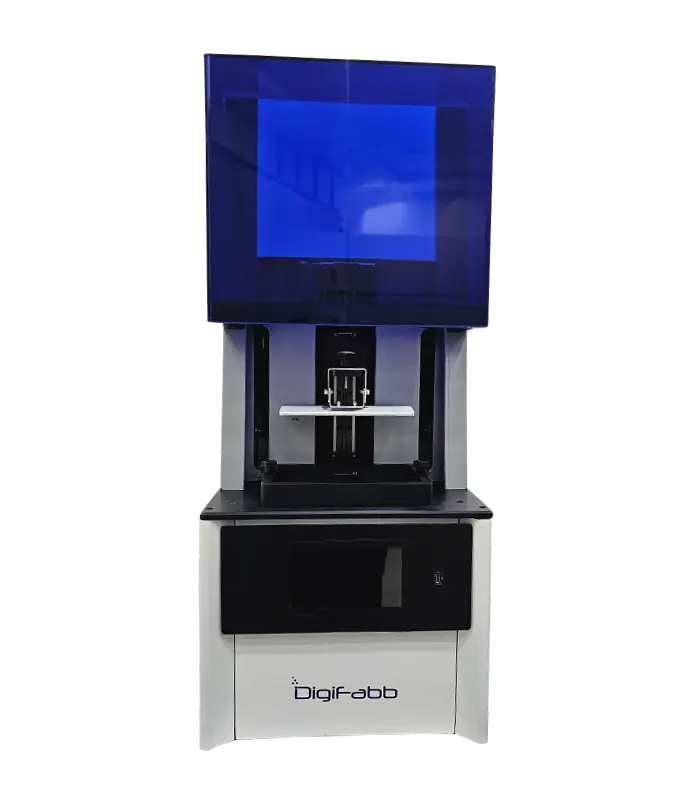

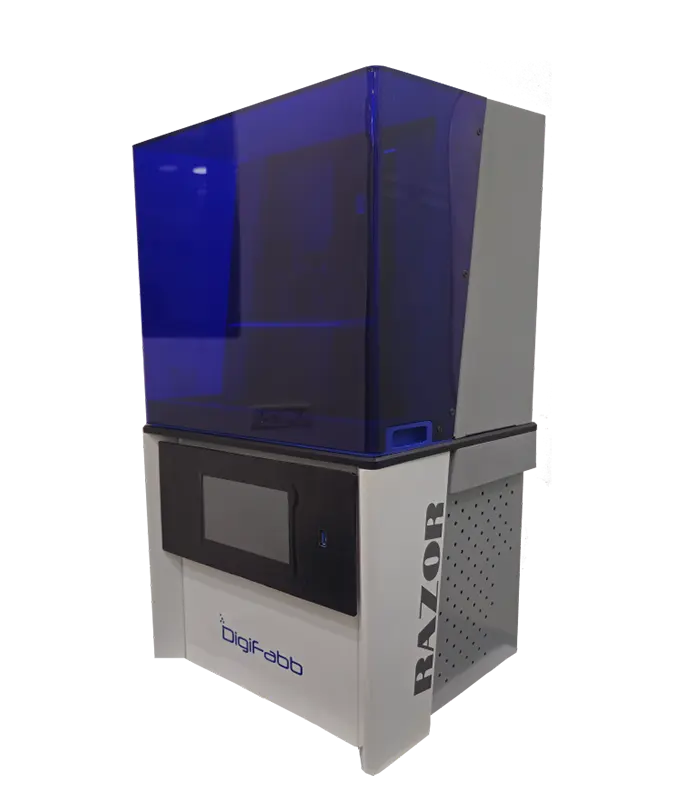

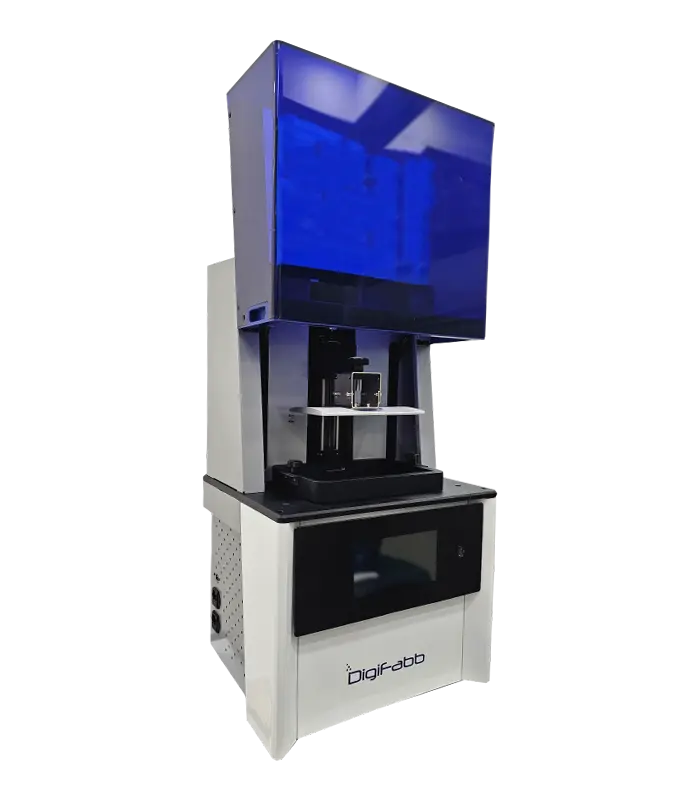

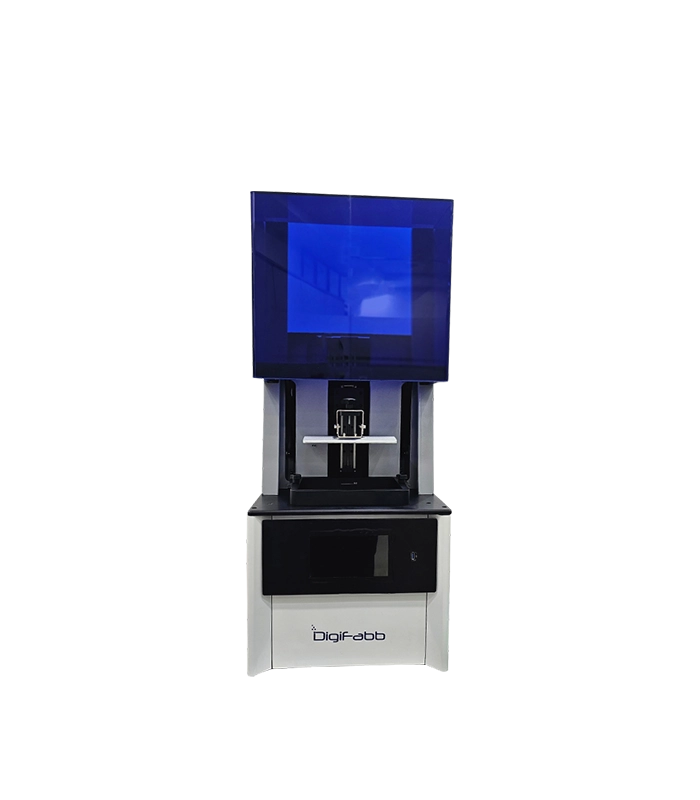

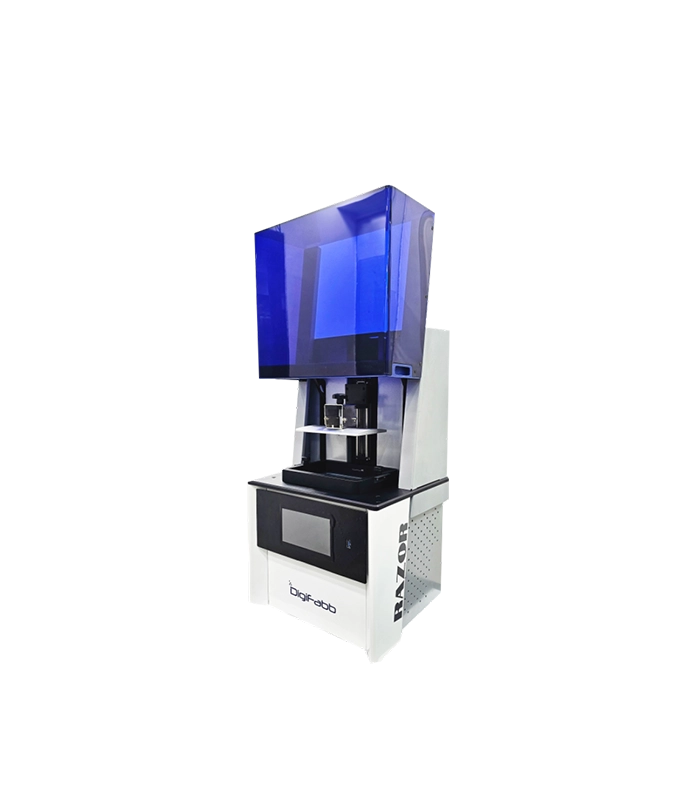

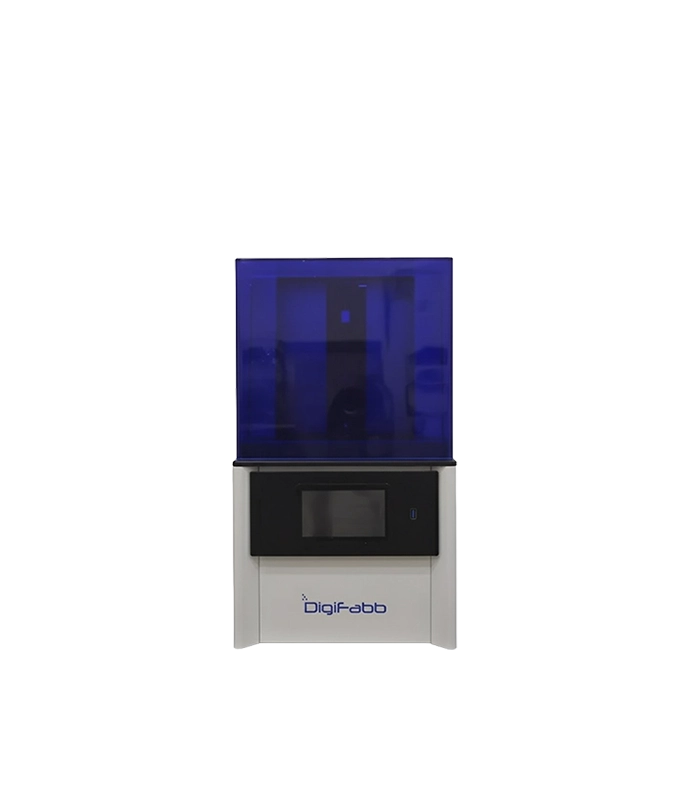

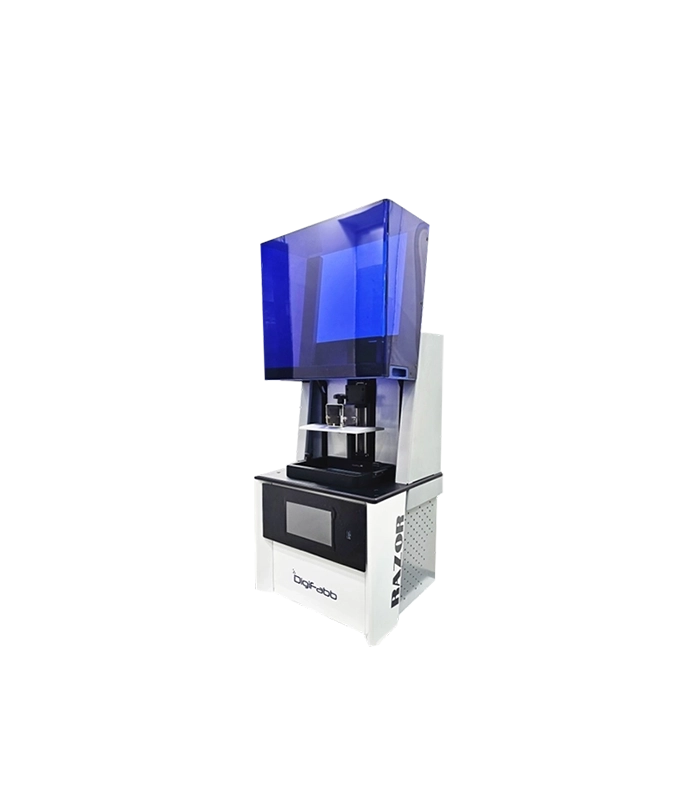

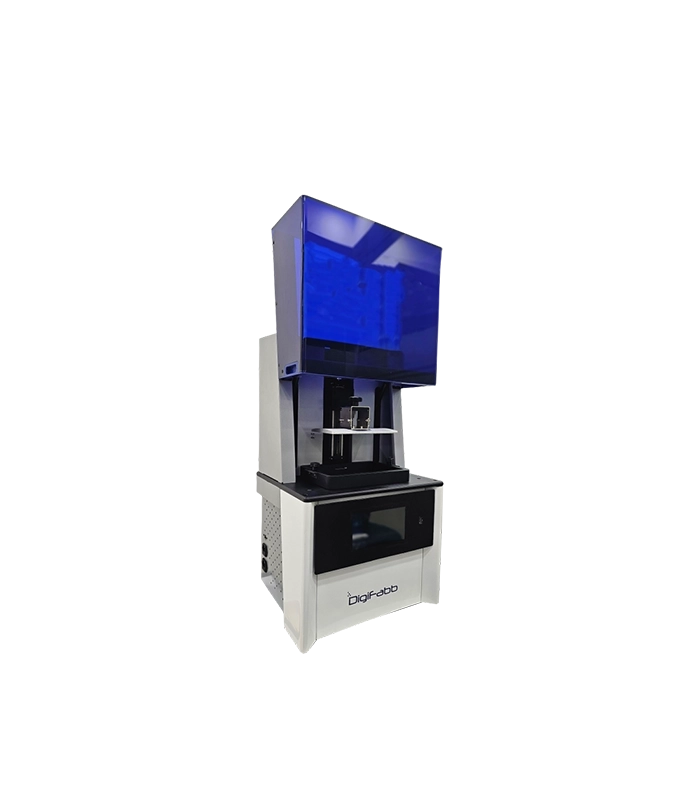

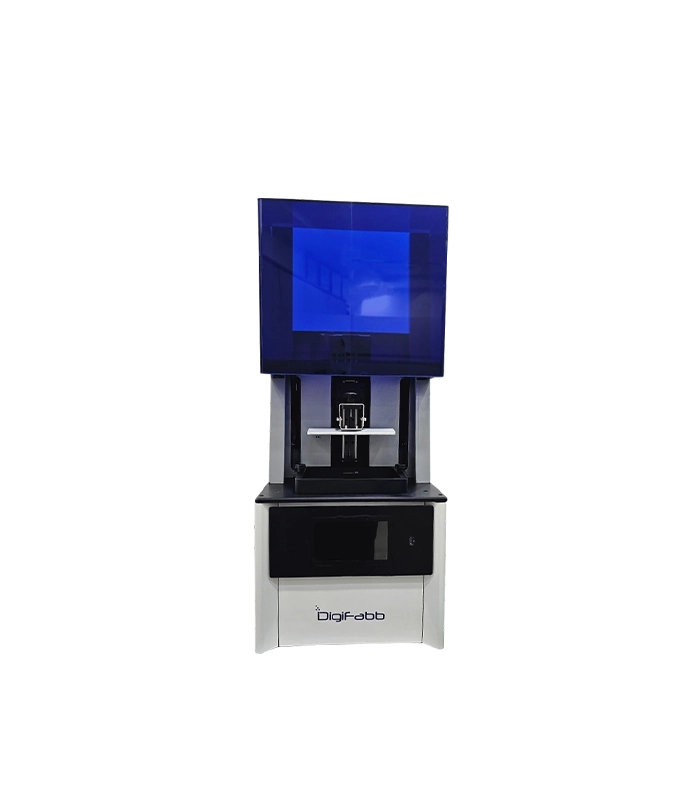

DigiFabb-Razor DLP 3D Printer
The DigiFabb-RAZOR is a compact 3D printer with DLP technology. It offers a 125 x 70 x 150 mm build volume, 49-micron XY resolution (2560 x 1440p), and a layer thickness options from 10 to 100 micron. With a production capacity of 50 grams per day, it supports both direct castable and non-castable resins. The DF-RAZOR is a versatile and precise solution for various DLP 3D printing needs.
- UHD DLP Technology
- 405 nm UV LED
- Industrial Z-Axis
- Multiple Resins Support
- Uniform Light Distribution
- 7-Inch HD Touchscreen
- Wi-Fi, USB & Ethernet
₹500,000.00 (excl tax)
Request Quote
Fill out the form below and our sales team will get back to you within 24 hours.
Request Demo
Fill out the form below and our sales team will get back to you within 24 hours.
Request Sample
Fill out the form below and our sales team will get back to you within 24 hours.
B2B GST Invoicing
Premium Technical Support
Pan India Shipping
High Quality Products
Warranty Support
High-performance Z-axis
The usage of industrial grade ball screw-based Z-Axis ensure the stable and smooth operation of the platform along the Z-axis with accurate positioning and eliminate the layer lines caused during printing.
Industrial UHD LED DLP Light Engine
UHD resolution, denser pixel distribution and higher printing precision than normal DLP 3D printers. All glass optics, zero offset projection and light source design optimization provide more crisp layer images when compared to normal DLP Projectors. Unique optical control system provides overall light engine life of more than 30000 hours. Uniform, efficient and stable light intensity output makes sure that there are no variations in model dimensions.
DLP technology provide considerably higher optical intesity and uniformity, resulting in much faster and acurate output in comparions to LCD 3D Printers.
HD Touchscreen
DigiFabb-Razor is equipped with a 7inch HD capacitive touchscreen, making it easy for operator to interact with the machine.
Powered By Raspberry Pi
Powered by Raspberry Pi 4 with 4GB RAM it provides much more smoother user experince when compared to most other systems. It runs on robust linux based OS, making it less prone to system failures.
Features & Specifications
Description
The DigiFabb-Razor is a high-precision DLP 3D printer designed for professional jewellery manufacturing, prototyping, and model production. Powered by UHD UV LED DLP technology, it delivers smooth surface quality, fine detail reproduction, and consistent dimensional accuracy.
Supporting both Multiple resins support, DigiFabb-Razor provides a versatile solution for jewellery studios that require workflows for direct casting as well as master pattern and mold-making applications. Its integrated resin heating system, industrial-grade Z-axis, and advanced optical engine help deliver stable and reliable printing performance.
Designed for professional production environments, DigiFabb-Razor combines high precision, efficient printing, and dependable operation in a compact DLP 3D printing solution.
Key Features
- High-Precision UHD DLP Technology: The UHD UV LED DLP light engine delivers high-resolution printing with dense pixel distribution for precise reproduction of intricate jewellery details and smooth surfaces.
- Multi-Material Compatibility: Supports both castable and model-making resins, making it suitable for jewelry studios using direct casting and mold-making workflows.
- Powered by Raspberry Pi 4: Powered by Raspberry Pi 4 with 4GB RAM and a Linux-based operating system for a smooth and reliable user experience.
- High-Performance Z-Axis: Industrial-grade dual linear guide rails and a ball-screw-based Z-axis provide smooth and accurate platform movement for stable printing performance.
- Industrial UHD LED DLP Light Engine: The optical system is designed to provide crisp layer images, uniform light output, and stable printing performance for demanding professional applications.
- 7-Inch HD Touchscreen: A 7-inch capacitive touchscreen provides an intuitive interface for convenient machine operation.
Technical Specifications
| Brand | DigiFabb |
| Technology | DLP |
| Model No. | DF Razor DLP |
| XY Resolution | 49 um (2560 p x 1440 p) |
| Production Capacity | 50g per day |
| Build Volume | 125 x 70 x 150 mm |
| Layer Thickness | 10 to 100 ums |
| Supported File Format | STL / SLC |
| Connectivity | Ethernet / USB / Wi-Fi |
| Touchscreen | 7 inches |
| Power Supply | 220 VAC, 50 Hz |
| LED Wavelength | 405 nm |
| Slicing Software | Easy3D / DigiFabb Creator |
| Weight | 58 Kg |
