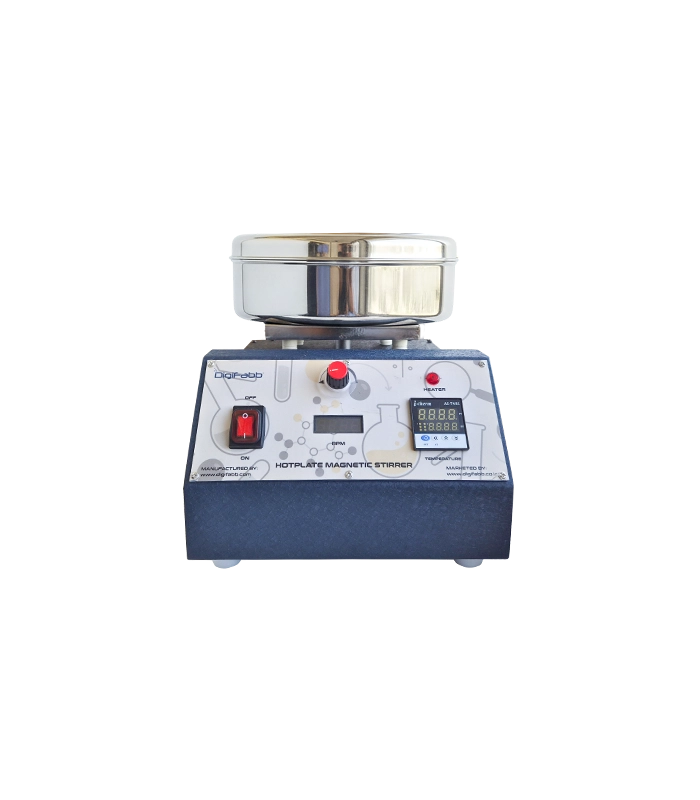

DigiFabb Hot Plate Magnetic Stirrer V3

Description

The DF HT Stirrer V3 is a professional hot plate magnetic stirrer specifically suited for solvent-based support removal in MJP wax 3D printing workflows. Effective removal of wax support material requires controlled solvent temperature and continuous agitation to accelerate dissolution without deforming delicate printed geometries. The DF HT Stirrer V3 is engineered precisely for this balance.

Using advanced PID temperature control with ±1°C setpoint stability, the system maintains consistent thermal conditions that optimize solvent activity. This prevents overheating, which can compromise part accuracy, while ensuring sufficient heat to efficiently dissolve support wax.

The stainless steel Pt100 temperature probe provides accurate real-time feedback, enabling precise process control during extended cleaning cycles. Combined with strong magnetic coupling and stable RPM performance, the stirrer ensures uniform solvent circulation around complex geometries, improving penetration into fine cavities and reducing overall cleaning time. Rapid heating capability shortens cycle initiation time, increasing workflow efficiency in 3D printing production environments. Integrated over-temperature cut-off protection enhances operational safety, particularly during continuous usage.

Key Product Features

• Controlled speed magnetic stirring for uniform and damage-free cleaning
• PID-based temperature control for precise solvent heating
• Stainless steel container compatible with industrial cleaning solvents
• Built-in heater for effective cleaning of viscous resins
• Safe operation with splash-preventing container lid
• Designed for 3D printing, laboratory, industrial, and research use
• Supplied as a complete ready-to-use system with accessories

Applications Highlights

✔ MJP 3D Printer Support Wax Removal

DF-HT Stirrer V3 is designed for efficient support wax removal from MJP 3D printed parts.
Precise temperature control ensures selective wax dissolution without affecting part wax. Controlled stirring enhances solvent penetration into complex geometries and internal cavities for uniform cleaning. Key performance advantage for MJP Support Wax Removal:

• Maintains optimal solvent temperature for controlled wax dissolution
• Uniform agitation improves support removal from intricate geometries
• Reduces manual intervention and cleaning time
• Minimizes risk of part distortion
• Ensures repeatable and consistent post-processing results

✔ SLA / DLP / LCD 3D Printer Cleaning

Optimized for removal of uncured resin from vat photopolymerization 3D prints.
Controlled heating and stirring improve cleaning efficiency, especially for viscous resins, ensuring residue-free surfaces without mechanical damage.

✔ Laboratory, Industrial & Research Use

Suitable for magnetic stirring and controlled heating of liquids in laboratories, industrial processes, and research environments. DF HT Stirrer V3 supports resin preparation, electroplating bath temperature stabilization, chemical solution mixing, material testing, and controlled heating applications in industrial and laboratory environments.

The DF HT Stirrer V3 is built for Built for consistent performance, safety, and long service life and delivers precision thermal control and reliable agitation.
